Differentiation (Finding Derivatives)

By M Bourne

In this Chapter

1. Limits and Differentiation
2. The Slope of a Tangent to a Curve (Numerical)
3. The Derivative from First Principles
4. Derivative as an Instantaneous Rate of Change
5. Derivatives of Polynomials
6. Derivatives of Products and Quotients
7. Differentiating Powers of a Function
8. Differentiation of Implicit Functions
9. Higher Derivatives

See also the Introduction to Calculus, where there is a brief history of calculus.

What is Differentiation?

Differentiation is all about finding rates of change of one quantity compared to another. We need differentiation when the rate of change is not constant.

What does this mean?

Constant Rate of Change

Let's take an example of a car travelling at a constant 60 km/h. The distance-time graph would look like this:

We notice that the distance from the starting point increases at a constant rate of 60 km each hour, so after 5 hours we have travelled 300 km. We notice that the slope (gradient) is always 300/5 = 60 for the whole graph. There is a constant rate of change of the distance compared to the time. The slope is positive all the way (the graph goes up as you go left to right along the graph.)

Rate of Change that is Not Constant

Now let's throw a ball straight up in the air. Because gravity acts on the ball it slows down, then it reverses direction and starts to fall. All the time during this motion the velocity is changing. It goes from positive (when the ball is going up), slows down to zero, then becomes negative (as the ball is coming down). During the "up" phase, the ball has negative acceleration and as it falls, the acceleration is positive.

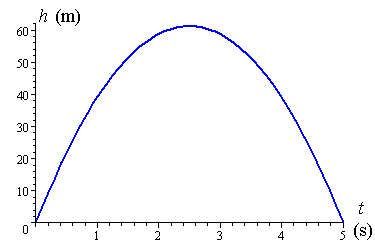

Now let's look at the graph of height (in metres) against time (in seconds).

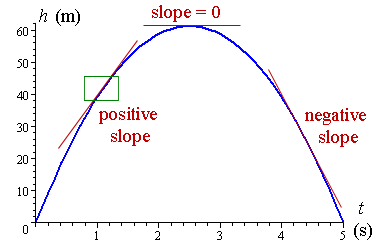

Notice this time that the slope of the graph is changing throughout the motion. At the beginning, it has a steep positive slope (indicating the large velocity we give it when we throw it). Then, as it slows, the slope get less and less until it become 0 (when the ball is at the highest point and the velocity is zero). Then the ball starts to fall and the slope becomes negative (corresponding to the negative velocity) and the slope becomes steeper (as the velocity increases).

Important Concept - Approximations of the Slope

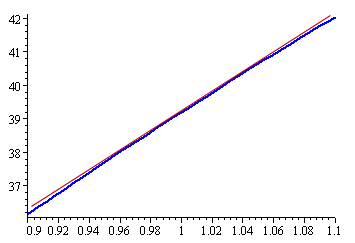

Now, let's zoom in on the section of the graph near t = 1 (where I have the rectangle in the graph above). We look at the bit between t = 0.9 s and t = 1.1 s. It looks like this:

Notice that if we zoom in close enough to a curve, it begins to look like a straight line. We can find a very good approximation to the slope of the curve at the point t = 1 (it will be the slope of the tangent to the curve, marked in dark red) by observing the points that the curve passes through near t = 1. (A tangent is a line that touches the curve at one point only.)

Observing the graph, we see that it passes through (0.9, 36.2) and (1.1, 42). So the slope of the tangent at t = 1 is about:

The units are m/s, as this is a velocity. We have found the rate of change by looking at the slope.

Clearly, if we were to zoom in closer, our curve would look even more straight and we could get an even better approximation for the slope of the curve.

This idea of "zooming in" on the graph and getting closer and closer to get a better approximation for the slope of the curve (thus giving us the rate of change) was the breakthrough that led to the development of differentiation.

Development of Differential Calculus

Up until the time of Newton and Leibniz, there was no reliable way to describe or predict this constantly changing velocity. There was a real need to understand how constantly varying quantities could be analysed and predicted. That's why they developed differential calculus, which we will learn about in the next few chapters.

LiveMath Examples

Let's use LiveMath to investigate what we have been talking about before we go any further.

LIVEMath

Here is an interesting problem in LiveMath that we will learn to solve later:

LIVEMath

(You can see the solution here: Curvilinear Motion)

Why Study Differentiation?

There are many applications of differentiation in science and engineering. You can see some of these in Applications of Differentiation.

Differentiation is also used in analysis of finance and economics.

One important application of differentiation is in the area of optimisation, which means finding the condition for a maximum (or minimum) to occur. This is important in business (cost reduction, profit increase) and engineering (maximum strength, minimum cost.)

Optimisation Example

A box with a square base is open at the top. If 64 cm² of material is used, what is the maximum volume possible for the box?

We will return to this problem later and see how to do it in the Applications of Differentiation chapter.

The Approach We Use

The approach we follow here is the same as that discovered historically:

• Numerical approach to finding slopes (in Limits and Slope of a Tangent)
• Algebraic approach to finding slopes (Differentiation from First Principles and Derivative as Instantaneous Rate of Change)
• A set of rules for differentiating (Derivatives of Polynomials)

You can skip the first few sections if you just need the differentiation rules, but that would be a shame because you won't see why it works the way it does.

The remainder of the chapter explains how to find derivatives of more complex expressions.

We begin with a look at Limits and Differentiation »
